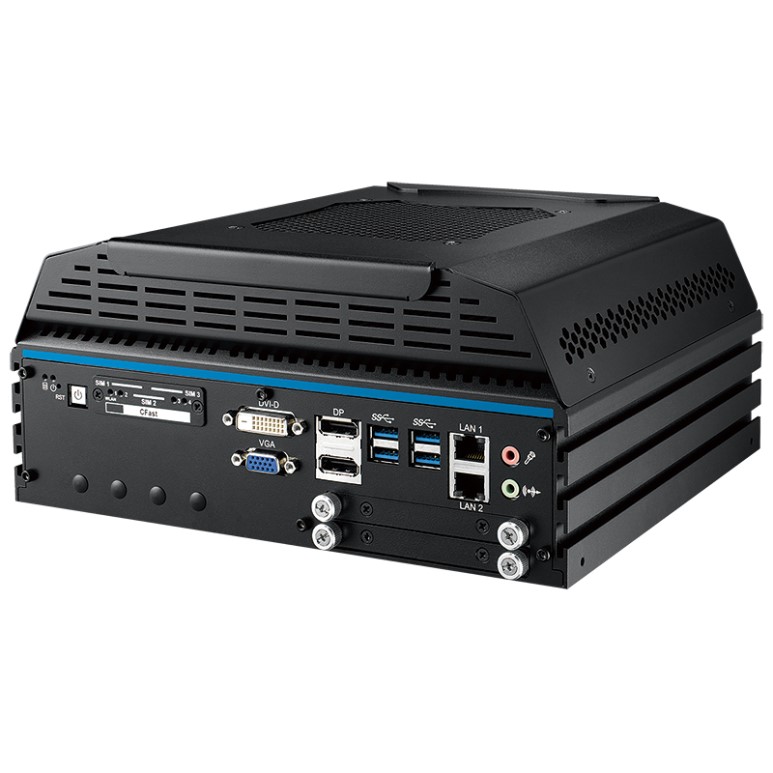

EVS-1100

산업용보드 > 1U Rackmount

제품문의 02-3016-2464 http://www.wjubc.co.kr?

Features

LGA 1151 Socket supports workstation-grade 7th generation Intel® Xeon®/Core™ i7/i5/i3 processor (Kaby Lake/Skylake) with C236 chipset

Compact NVIDIA® GeForce® GTX 10 Series MXM graphics engine supports NVIDIA® Pascal™ GPU architecture, up to 8K resolution

All-in-one, -25°C to 60°C Operating Temperature

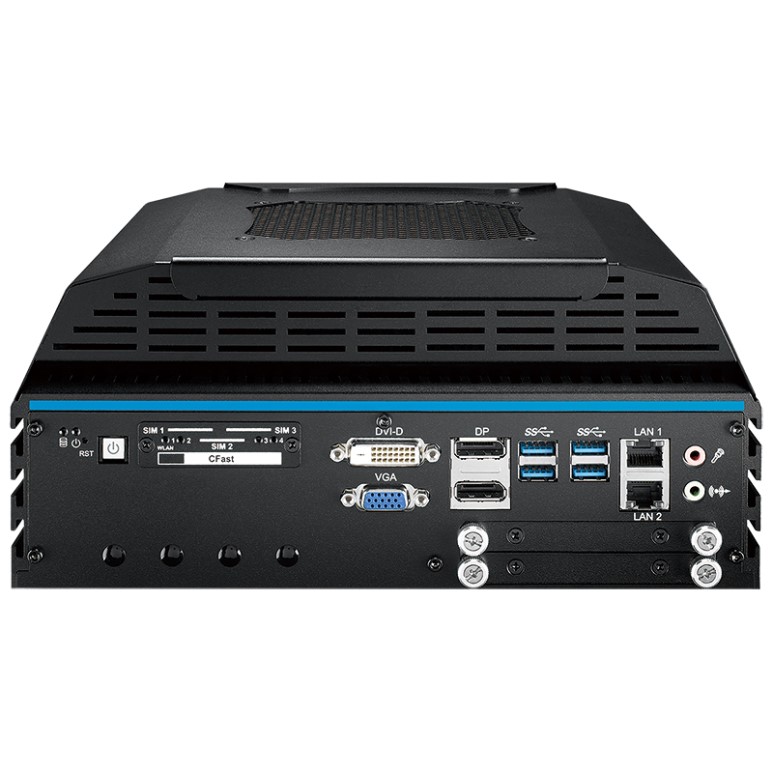

Display : 1 VGA, 1 DVI and 6 DisplayPort, up to 7 independent HD display

3 SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS

2 Front-access 2.5" SSD trays, 1 CFast socket, 2 SATA III, 3 COM socket

Expansion: 1 PCI/PCIe slot, 3 Mini PCIe, optional SUMIT A, B slots

6 USB 3.0, 32 Isolated DIO

10V to 36V DC Power Input with 80V Surge Protection

Configurable Ignition Control

Specifications

System
Processor	Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S)
Chipset	Intel® C236
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2400/2133MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
OS	Windows 10, Windows 8.1, Windows 7, Linux
I/O Interface
Serial	3 COM RS-232/422/485 (ESD 8KV)
USB	- 6 USB 3.0 (External) - 1 USB 2.0 (Internal)
Isolated DIO	32 Isolated DIO : 16 DI, 16 DO
LED	Power, HDD
SIM Card	3 External SIM Card Socket
Expansion
Mini PCIe	3 Mini PCIe Socket : 3 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe	1 PCI/PCIe x4 Slot
SUMIT A, B	2 SUMIT Slot (Optional)
Graphics
Processor	- Intel® HD Graphics 630/P530/530 - NVIDIA® GeForce® GTX 1080/1070/1060/1050 (MXM Module)
Interface	8 Display interfaces: - 1 VGA : Up to 1920 x 1200 @ 60Hz - 1 DVI : Up to 1920 x 1200 @ 60Hz - 2 DisplayPort : Up to 4096 x 2304 @ 60Hz - 4 DisplayPort : Up to 7680 x 3840 @ 60Hz
Storage
SATA	2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA	3 SATA III (Mini PCIe Type, 6Gbps)
Storage Device	- 1 CFast Socket, Push-in/Push-out Ejector - 2 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2	Intel® I210 GigE LAN
Power
Power Input	EVS-1100 MXM1050, MXM1060: 10V to 36V, DC-in EVS-1100 MXM1070, MXM1080: 16V to 36V, DC-in

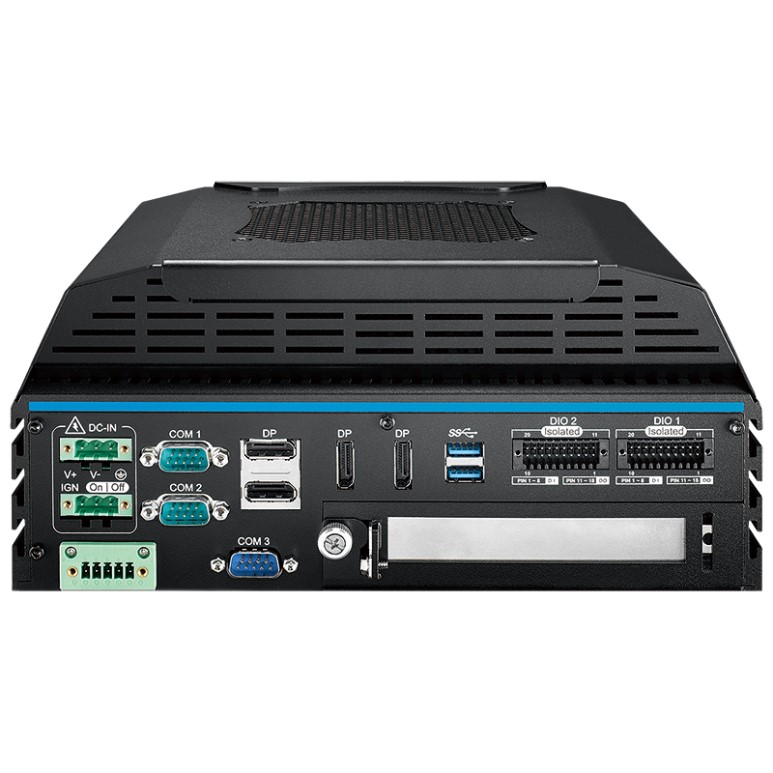

Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control	16 Mode (Internal)
Remote Switch	3-pin Terminal Block
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension (W x L x H)	260mm x 215mm x 115mm (10.2" x 8.5" x 4.5")
Weight	4.9 kg (10.8 lb)
Mounting	- Wallmount by mounting bracket - DIN Rail Mount
Environment
Operating Temperature	MXM1070/1060/1050: -25°C to 60°C (-13°F to 140°F) MXM1080: -25°C to 50°C (-13°F to 122°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 60°C
Shock	IEC 60068-2-27, SSD: 50G @ wallmount, Half-sine, 11ms
Vibration	IEC 60068-2-64, SSD: 5Grms, 5Hz to 500Hz, 3 Axis
EMC	CE, FCC, EN50155, EN50121-3-2
