Specification

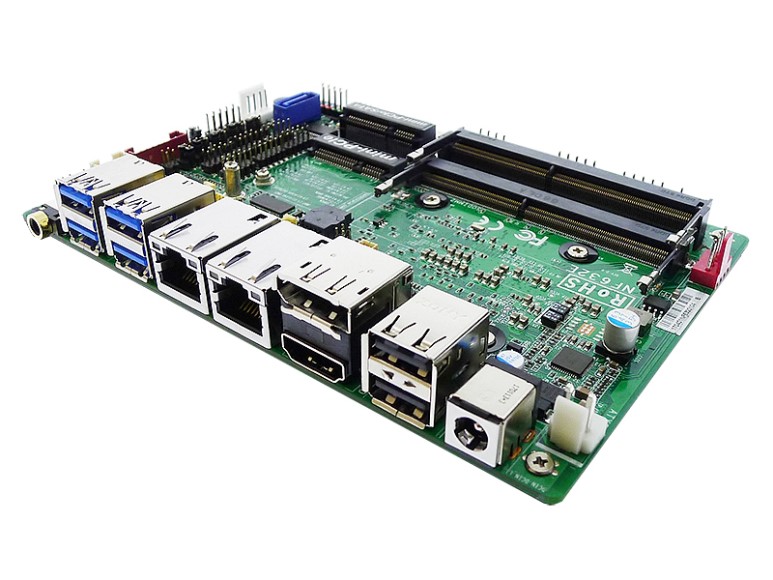

Jetway NF632E 3.5" SBC Motherboard
Processor
Intel® Core i5-7300U, 2.60GHz ? 3.50GHz Burst, 2-Core 4-Thread, 15W TDP, vPro
* Ships with passive heatsink installed for bench testing
Memory
2 x 260-pin SODIMM un-buffered Dual Channel DDR4-2133 up to 32GB Total
Graphics
Intel HD Graphics 520, 300MHz - 1.0GHz
Audio
Realtek ALC662VD HD Audio
LAN
1 x Intel i219LM PHY Gigabit LAN (iAMT 11.0)
1 x Intel i211AT PCI-E Gigabit LAN
Storage
1 x SATA3 6Gb/s Connector
1 x Shared mSATA/mini-PCI Express Combo Slot (Full-size)
Super IO
NUVOTON NCT6116D
TPM
Intel fTPM 2.0 (PTT) Trusted Computing Firmware
OEM Option: Onboard TPM v1.2 or v2.0
