PRODUCT

BOARD & MODULES

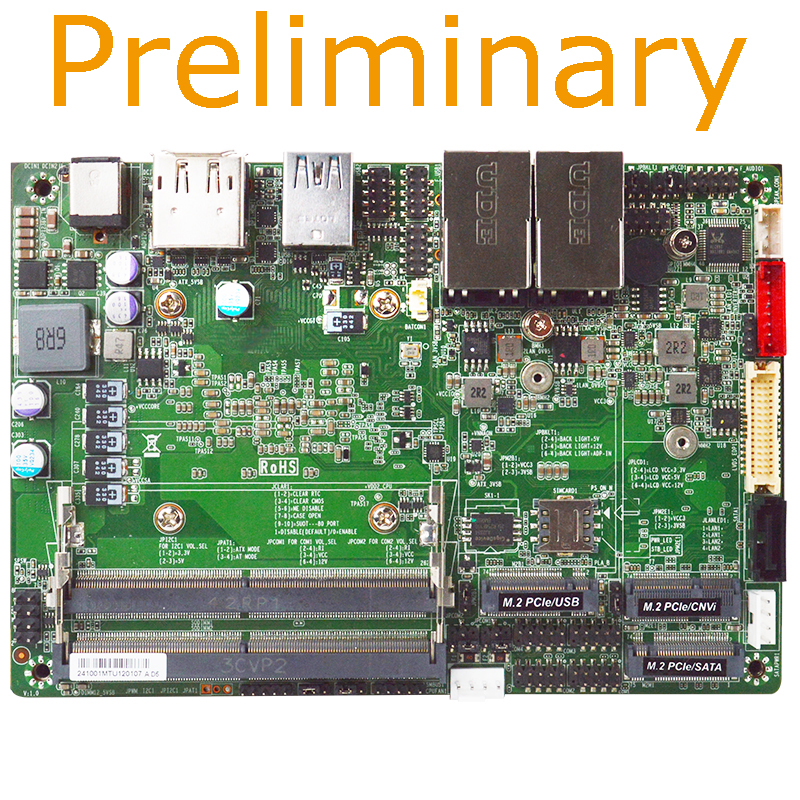

F35-ARU1

3.5” SubCompact Board with Intel® Core Ultra 5 or Core Ultra 7 processor

  • Powered by Intel® Core Ultra SoC processor (Arrow Lake): With integrated NPU for AI acceleration
  • High-Speed Memory: Supports dual-channel DDR5 6400MT/s CSO-DIMM with maximum capacity of 128GB
  • Muti-Display: Supports four independent displays, up to 4K@60Hz
  • Dual Intel® 2.5GbE LAN: Supports TSN, Redundancy, and High-speed connectivity
  • Storage and Expansion: 1x SATA III, 1x M.2 E-Key, 1x M.2 M-Key, 1x M.2 B-Key, and 1x Nano SIM slot, support RAID
  • Comprehensive I/O: 1x USB 3.2 Gen2x2, 3x USB 3.2 Gen 2, 4x USB 2.0, and 4x COM ports. (USB3.2 type-C colay DP)
  • Wide-Range DC Input: 12–36V for industrial applications
Datasheet(PDF)
  • Powered by Intel® Core Ultra SoC processor (Arrow Lake): With integrated NPU for AI acceleration
  • High-Speed Memory: Supports dual-channel DDR5 6400MT/s CSO-DIMM with maximum capacity of 128GB
  • Muti-Display: Supports four independent displays, up to 4K@60Hz
  • Dual Intel® 2.5GbE LAN: Supports TSN, Redundancy, and High-speed connectivity
  • Storage and Expansion: 1x SATA III, 1x M.2 E-Key, 1x M.2 M-Key, 1x M.2 B-Key, and 1x Nano SIM slot, support RAID
  • Comprehensive I/O: 1x USB 3.2 Gen2x2, 3x USB 3.2 Gen 2, 4x USB 2.0, and 4x COM ports. (USB3.2 type-C colay DP)
  • Wide-Range DC Input: 12–36V for industrial applications
SYSTEM
MB FORM FACTOR3.5"
CPUOnboard Intel® Core™ Ultra 5 Processor 225U (Formerly Arrow Lake-U, TDP 15W)
Onboard Intel® Core™ Ultra 7 Processor 255U (Formerly Arrow Lake-U, TDP 15W)
For additional compatible CPUs, please contact regional sales
CHIPSETIntel® SoC
MEMORY2 x DDR5 6400MT/s, Dual Channel CSO-DIMM, up to 128GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYTPM2.0 (dTPM, Optional)
RTC BATTERYLithium Battery
DIMENSION (W X D)148.0 (W) x 102.0 (D) mm (5.8″ x 4.0″)
OS SUPPORTWindows® 11 (64bit), Windows® 10 (64bit), Linux
POWER
POWER REQUIREMENTDC-in 12~36V
POWER ON MODEAT / ATX (Default) Mode
CONNECTORDC Jack
DISPLAY
GPUIntel® Graphics
LVDS1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1200 @60Hz, co-layout eDP)
Type-C DP1 x Type-C DP 1.4 (Max Resolution: 3840 x 2160@60Hz)
DP1 x DP1.4 (Max Resolution: 3840 x 2160@60Hz)
HDMI®1 x HDMI 2.0b (Max Resolution: 3840 x 2160@60Hz)
MULTIPLE DISPLAYSupport 4 Displays
AUDIO
CODECRealtek Audio Codec
COMBO1 x Internal Header
AMPLIFIER3W
LAN
ETHERNET1 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I226-LM 2.5GbE
USB PORT
USB1 x USB 3.2 Gen 2x2 Type-C (20Gbps)
3 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
Internal Header for 4 x USB 2.0
SERIAL PORT
COMInternal Header for 4 x RS-232/422/485
INTERNAL I/O
GPIO8-Bit
SMBUSYes
I2CYes
FAN1 x 4-pin Connector for CPU Fan (PWM Mode)
FRONT PANELHDD Active LED, Power LED, Power On/Off, Reset
ADDITIONAL1 x Chassis intrusion
1 x AT/ATX Mode Selection
STORAGE
SATA1 x SATA III
1 x SATA Power Connector
RAIDRAID 0/1
EXPANSION
M.21 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVio
1 x B-Key 3042/3052 (USB 3.2/PCIe 3.0 x2)
1 x M-Key 2242/2280 (PCIe 4.0 x4 / SATA III) Support NVMe
SIM1 x Nano SIM Card Slot
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% relative humidity, non-condensing
CERTIFICATIONCE/FCC Class A
PART NUMBERF35-ARU1-225U0020F35-ARU1-225U0220F35-ARU1-255U0020F35-ARU1-255U0220
CPUIntel® Core™ Ultra 5 225UIntel® Core™ Ultra 5 225UIntel® Core™ Ultra 7 255UIntel® Core™ Ultra 7 255U
SECURITYIntel® PTT (fTPM)TPM 2.0 (dTPM)Intel® PTT (fTPM)TPM 2.0 (dTPM)
