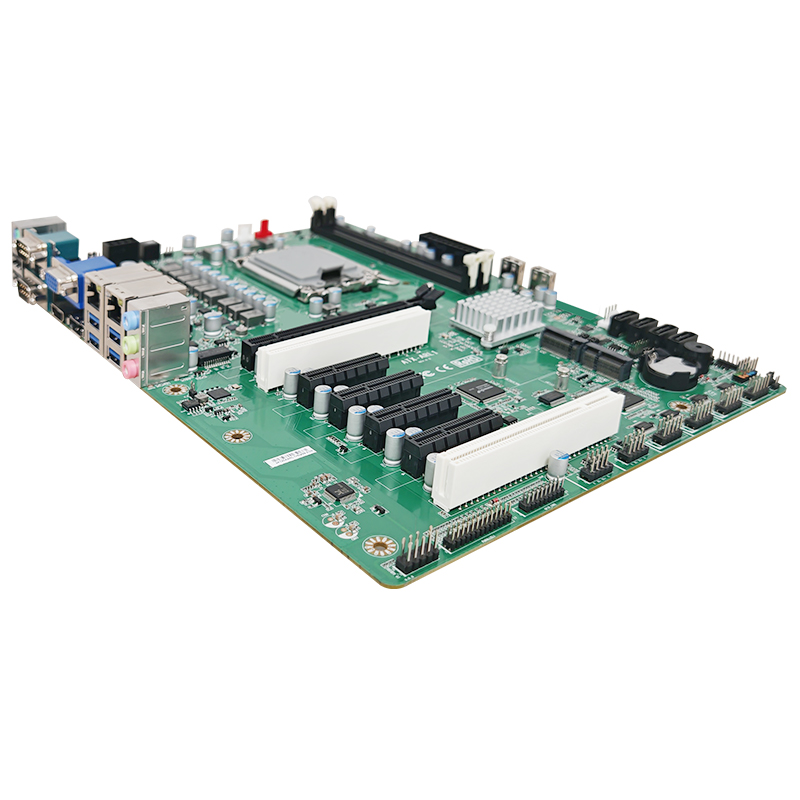

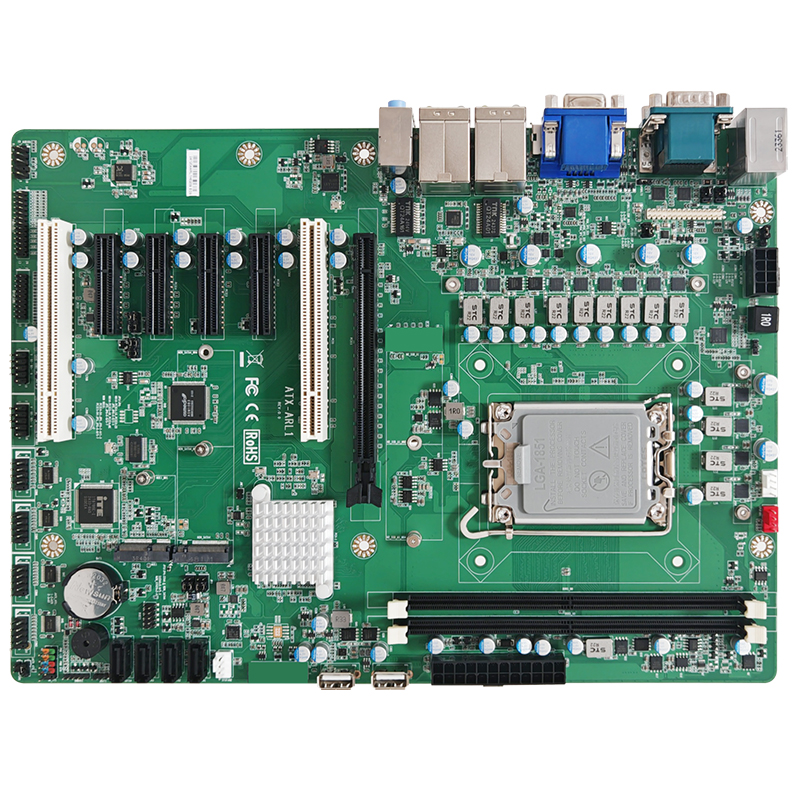

ATX-ARL1-H810

ATX Industrial Motherboard Supporting Intel® Core™ Ultra Processors (Series 2), Socket LGA1851

  • Powered by Intel® Core™ Ultra processors (Arrow Lake-S) with H810 chipset
  • 2 x DDR5 6400MT/s UDIMM up to 96GB

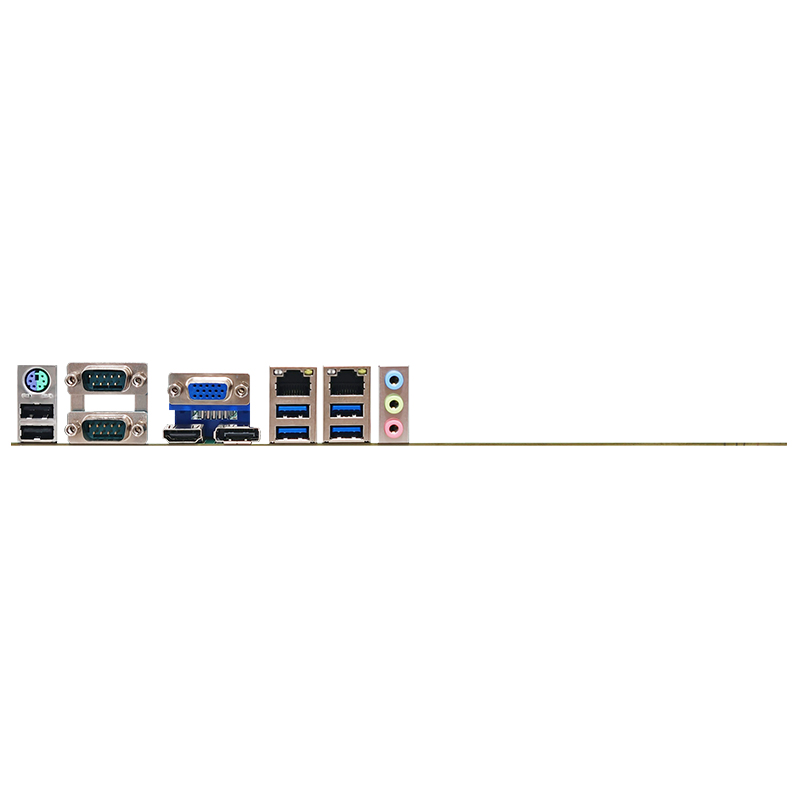

  • 1 x VGA, 1 x HDMI®, 1 x DP
  • 1 x 2.5GbE LAN, 1 x GbE LAN
  • 6 x COM, 4 x USB3.2 (Gen.1), 6 x USB2.0, 2 x USB2.0 Type-A（Vertical）
  • 1 x M.2 M-key, 2242/2280 (SATA Interface), 1 x M.2 E-key, 2230 (CNVi/USB2.0 Interface)
  • 1 x PCIe x16 (Gen4), 1 x PCIe x4 (Gen4), 3 x PCIe x1 (Gen4), 2 x PCI
Datasheet(PDF)
  • Powered by Intel® Core™ Ultra processors (Arrow Lake-S) with H810 chipset
  • 2 x DDR5 6400MT/s UDIMM up to 96GB
  • 1 x VGA, 1 x HDMI®, 1 x DP
  • 1 x 2.5GbE LAN, 1 x GbE LAN
  • 6 x COM, 4 x USB3.2 (Gen.1), 6 x USB2.0, 2 x USB2.0 Type-A（Vertical）
  • 1 x M.2 M-key, 2242/2280 (SATA Interface), 1 x M.2 E-key, 2230 (CNVi/USB2.0 Interface)
  • 1 x PCIe x16 (Gen4), 1 x PCIe x4 (Gen4), 3 x PCIe x1 (Gen4), 2 x PCI
SYSTEM
MB FORM FACTORATX
CPUIntel® LGA1851 Socket Ultra 9/7/5th Gen Processor (Max. TDP 125W)
CHIPSETIntel® Arrow lake-S H810 Chip
MEMORY2 x DDR5 6400MT/s, Dual Channel U-DIMM, up to 96GB
BIOSAMI Flash ROM
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYIntel® PTT (Integrated fTPM) & TPM 2.0 (dTPM)
RTC BATTERYLithium Battery
DIMENSION (W X D)305.0 (W) x 220.0 (D) mm (12" x 8.7")
OS SUPPORTWindows® 11 (64bit), Windows® 10 (64bit), Linux
POWER
POWER REQUIREMENTATX Power Supply
POWER ON MODEAT / ATX (Default) Mode
CONNECTOR24+8-pin ATX PWR
DISPLAY
GPUIntel® HD Graphics
DP1 x DP2.1 (Max Resolution:7680 x 4320@60Hz)
HDMI®1 x HDMI® 2.0 (Max Resolution: 4096 x 2304@60Hz)
VGA1 x VGA (Max Resolution: 1920 x 1080 @60Hz)
MULTIPLE DISPLAYSupport 3 Displays
AUDIO
CODECRealtek ALC897
Line-in1 x Audio Jack for Line-In
Line-out1 x Audio Jack for Line-Out
MIC-in1 x Audio Jack for MIC-In
LAN
ETHERNET1 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I219-V GbE
USB PORT
USB4 x USB 3.2 Gen 1
2 x USB 2.0
Internal Header for 4 x USB 2.0
Internal USB Type A (Vertical) for 2 x USB 2.0
SERIAL PORT
COMInternal Header for 4 x RS-232
2 x DB-9 for RS-232/422/485
INTERNAL I/O
GPIO16 bit GPIO (5V) co-layout LPT
SMBUSYes
FAN1 x CPU Fan Header
2 x System Fan Header
FRONT PANELHDD Active LED, Power LED, Power On/Off, Reset
ADDITIONAL1 x Chassis intrusion
1 x AT/ATX Mode Selection
1 x Case Open
1 x eDP (Optional)
STORAGE
SATA4 x SATA III
EXPANSION
PCIe1 x PCIe x16 (Gen 4)
4 × PCIe Gen4 slots (PCIe2/PCIe3: x1, PCIe4: x4) or (PCIe2/PCIe3/PCIe5: x1, PCIe4: x2
2 x PCI
M.21 x M-key 2242/2280 (SATA interface, co-layout SATA4)
1 x E-Key 2230 (USB2.0 + CNVi interface)
OTHERs
OTHER1 x PS/2
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE0°C ~ 60°C (32°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 70°C (-4°F ~ 158°F)
OPERATING HUMIDITY10 ~ 90% @ 40°C, Non-condensing
CERTIFICATIONCE/FCC Class A
LVD
ESG DECLARATIONEU RoHS, China RoHS, REACH (Option)
