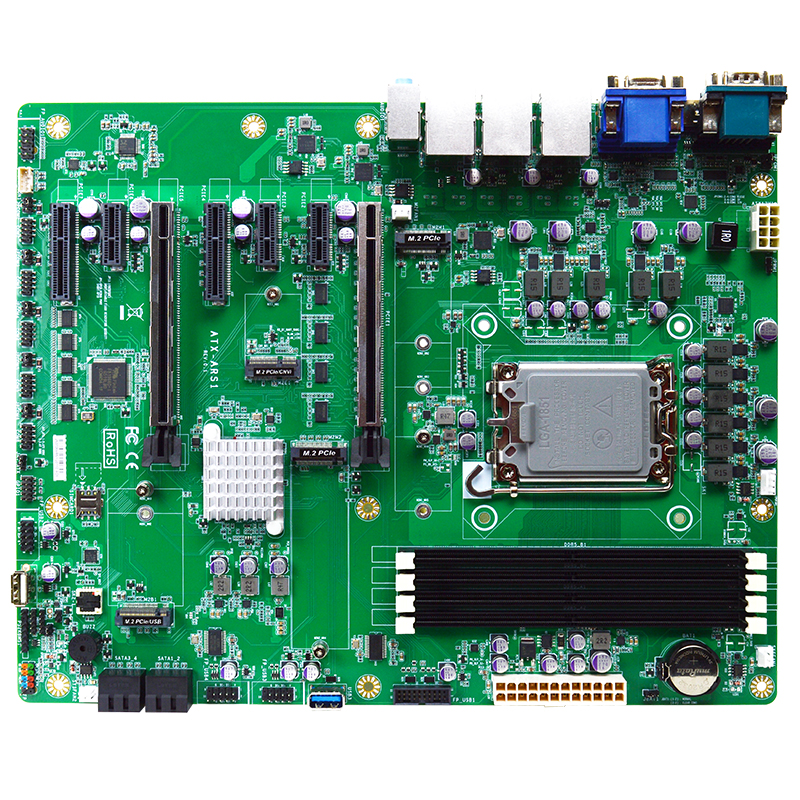

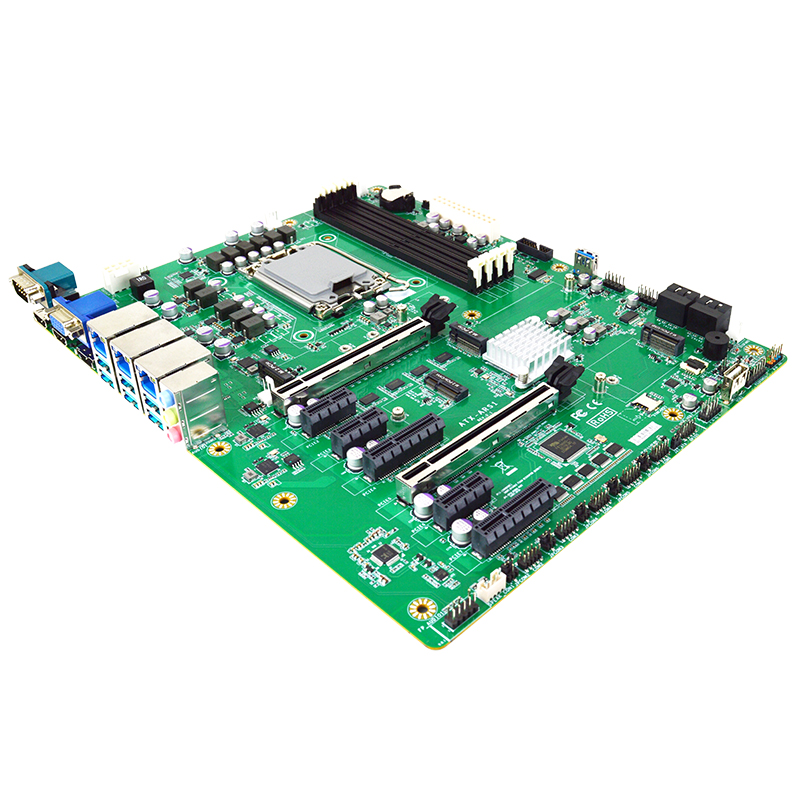

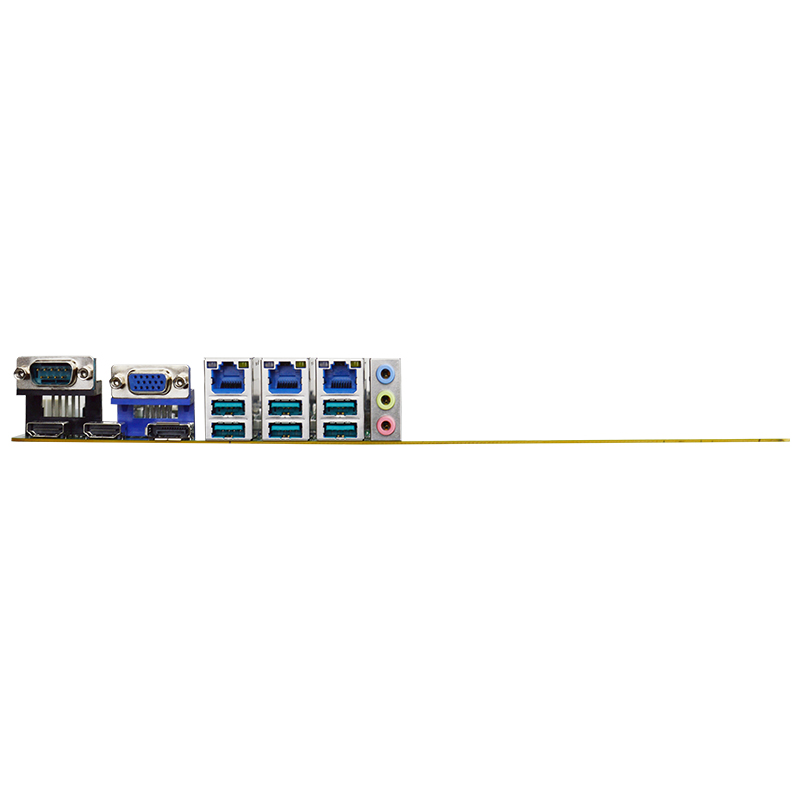

ATX-ARS1-W880

ATX Industrial Motherboard Supporting Intel® Core Ultra Processors (Series 2), Socket LGA1851

  • Powered by Intel® Core™ Ultra processors (Arrow Lake-S) with W880 chipset
  • High-Speed Memory Support: 4 x DDR5 6400MT/s Dual Channel U-DIMM, up to 256GB ECC supported
  • Triple 2.5GbE Networking: 3 x Intel® 2.5GbE Ethernet ports
  • Versatile Storage Options: 4 x SATA III with RAID 0/1/5/10, 2 x M.2 M-key (NVMe)
  • Multiple Expansion Slots: 1 x B-Key, 1x E-Key, 2 x PCIe Gen.5 x16, 2 x PCIe Gen.4 x4, 3 x PCIe Gen.3 x1
  • Comprehensive Quad Display Support: 2 x 4K HDMI 2.1 TMDS, 1 x 4K DP, and VGA
  • Rich Connectivity: 9 x USB 3.2, 7 x USB 2.0, 6 x COM , 1 x 8 bits GPIO
  • Enhanced Security: Onboard TPM 2.0 (optional)
Datasheet(PDF)
  • Powered by Intel® Core™ Ultra processors (Arrow Lake-S) with W880 chipset
  • High-Speed Memory Support: 4 x DDR5 6400MT/s Dual Channel U-DIMM, up to 256GB ECC supported
  • Triple 2.5GbE Networking: 3 x Intel® 2.5GbE Ethernet ports
  • Versatile Storage Options: 4 x SATA III with RAID 0/1/5/10, 2 x M.2 M-key (NVMe)
  • Multiple Expansion Slots: 1 x B-Key, 1x E-Key, 2 x PCIe Gen.5 x16, 2 x PCIe Gen.4 x4, 3 x PCIe Gen.3 x1
  • Comprehensive Quad Display Support: 2 x 4K HDMI 2.1 TMDS, 1 x 4K DP, and VGA
  • Rich Connectivity: 9 x USB 3.2, 7 x USB 2.0, 6 x COM , 1 x 8 bits GPIO
  • Enhanced Security: Onboard TPM 2.0 (optional)
SYSTEM
MB FORM FACTORATX
CPUIntel® LGA1851 Socket, Processor Arrow Lake-S (MAX. TDP 125W)
CHIPSETIntel® W880
MEMORY4 x DDR5 6400MT/s, Dual Channel CU-DIMM, up to 256GB, ECC Supported
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYIntel® PTT (Integrated fTPM)
TPM2.0 (dTPM, Optional)
RTC BATTERYLithium Battery
DIMENSION (W X D)305.0 (W) x 244.0 (D) mm (12" x 9.6")
OS SUPPORTWindows® 11 (64bit)
Linux
POWER
POWER REQUIREMENTATX Power Supply
POWER ON MODEATX (Default) Mode
CONNECTORInternal 24+8-pin ATX Header
DISPLAY
GPUIntel® Graphics
DP1 x DP1.4a (Max Resolution: 4096 x 2160@60Hz)
HDMI®2 x HDMI® 2.1 TMDS (Max Resolution: 3840 x 2160@60Hz)
VGA1 x VGA (Max Resolution: 1920 x 1080 @60Hz)
MULTIPLE DISPLAYSupport 4 Displays
AUDIO
CODECRealtek codec
Line-in1 x Audio Jack for Line-in
Line-out1 x Audio Jack for Line-out
MIC-in1 x Audio Jack for MIC-in
AMPLIFIER3W
LAN
ETHERNET1 x RJ45 for Intel® I226-LM 2.5GbE
2 x RJ45 for Intel® I226-V 2.5GbE
USB PORT
USB6 x USB 3.2 Gen 2
Internal Header for 2 x USB 3.2 Gen 1
Internal Header for 6 x USB 2.0
Internal USB Type A (Vertical) for 1 x USB 3.2 Gen 1x1
Internal USB Type A (Vertical) for 1 x USB 2.0
SERIAL PORT
COM1 x DB-9 for RS-232/422/485
Internal Header for 5 x RS-232
INTERNAL I/O
GPIO8-Bit
SMBUSYes
I2CYes
FAN1 x CPU Fan Header (Smart Fan)
2 x System Fan Header
FRONT PANELHDD Active LED
Power LED
Power On/Off
Reset
ADDITIONAL1 x Chassis intrusion
1 x AT/ATX Mode Selection
STORAGE
SATA4 x SATA III
RAIDIntel® VMD RAID 0, 1 & SATA RAID 0, 1, 5, 10
EXPANSION
M.21 x M-Key 2242/2260/2280/22110 (PCIe Gen 5x4) support NVMe
1 x M-key 2280 (PCIe Gen 4 x4) support NVMe
1 x E-Key 2230 (USB 2.0/PCIe Gen 3 x1) support CNVio
1 x B-Key 3042/3052 (USB3.1/USB2.0/PCIe Gen 3 x1) for 4G/5G module
PCIe2 x PCIe Gen 5 x16 slots (1x PCIe Gen 5x16 or 2 x PCIe Gen 5 x8)
2 x PCIe Gen 4 x4
3 x PCIe Gen 4 x1
SIM1 x Nano SIM Card Slot
OTHERs
OTHER1 x PS/2
ENVIRONMENT & CERTIFICATION
SHOCK15G, 11ms duration
VIBRATION1 Grms/ 5~ 500Hz/ Operation
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% Relative Humidity, Non-condensing
STORAGE HUMIDITY10 ~ 90% @40°C, Non-condensing
CERTIFICATIONCE/FCC Class A
LVD
ESG DECLARATIONEU RoHS
China RoHS
WEEE
REACH
TSCA Declaration
PRO65 Declaration
CMRT Report
PART NUMBERATX-ARS1-W8800010ATX-ARS1-W8800210

CPUIntel® Socket LGA1851 CPUIntel® Socket LGA1851 CPU

SECURITYIntel® PTT (fTPM)Intel® PTT (fTPM) & TPM 2.0 (dTPM) Default
